DHCPv6配置

DHCPv6实验配置

## 一、DHCPv6有状态配置

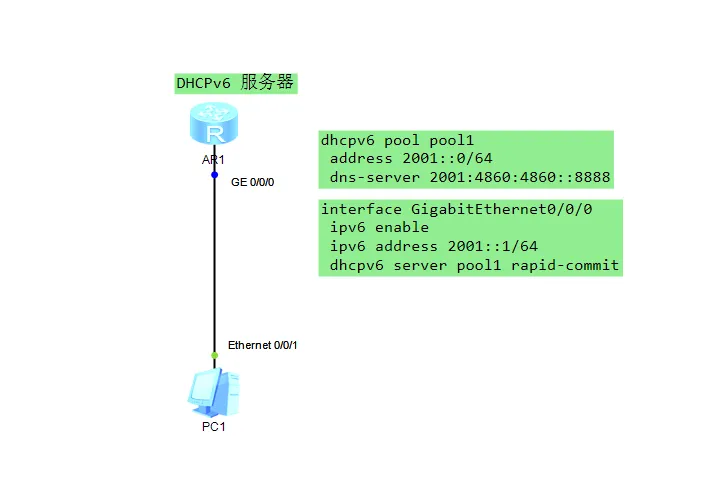

拓扑图：

![有状态配置](/media/202405/2024-05-07_173712_0661740.16720094425431575.png)

![请求报文](/media/202405/2024-05-07_173728_1394190.2232733736027659.png)

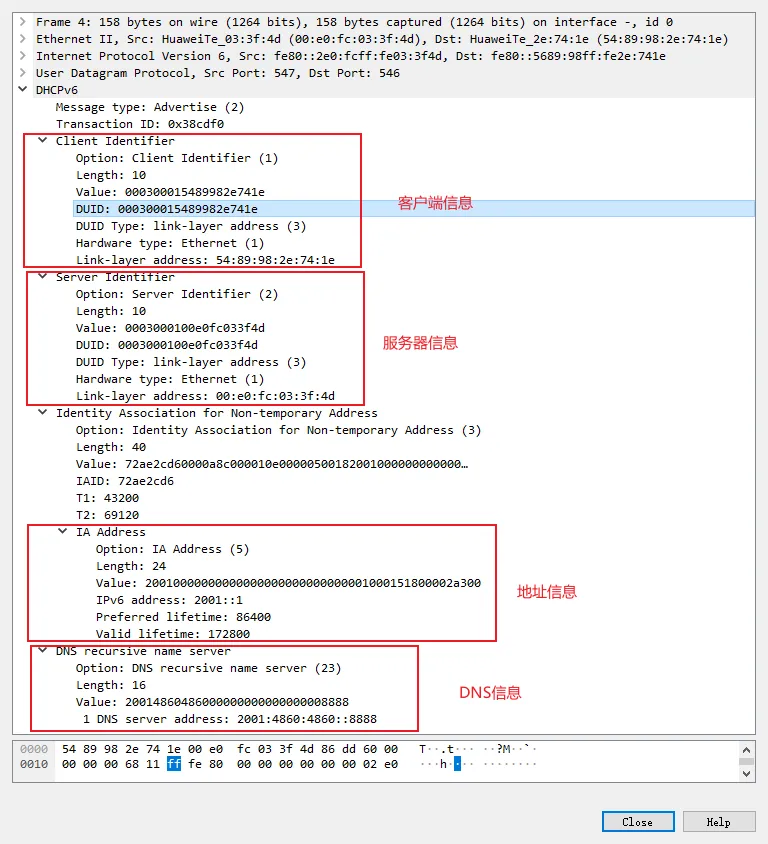

![回复报文中的信息](/media/202405/2024-05-07_173745_9721520.3832400919072171.png)

配置：
```ssh
# 全局启用ipv6
ipv6

# 启用DHCP
dhcp enable

# 创建dhcpv6的地址池
dhcpv6 pool pool1
 address prefix 2001::/64
 excluded-address 2001::10
 dns-server 2001:4860:4860::8888

# 接口配置启用ipv6，在接口调用地址池，rapid-commit快速分配即启用两步交互，如果客户端也支持的话
interface GigabitEthernet0/0/0
 ipv6 enable
 ipv6 address 2001::10/64
 dhcpv6 server pool1 rapid-commit
```

客户端配置：模拟器计算机似乎看不到DNS等其它信息。

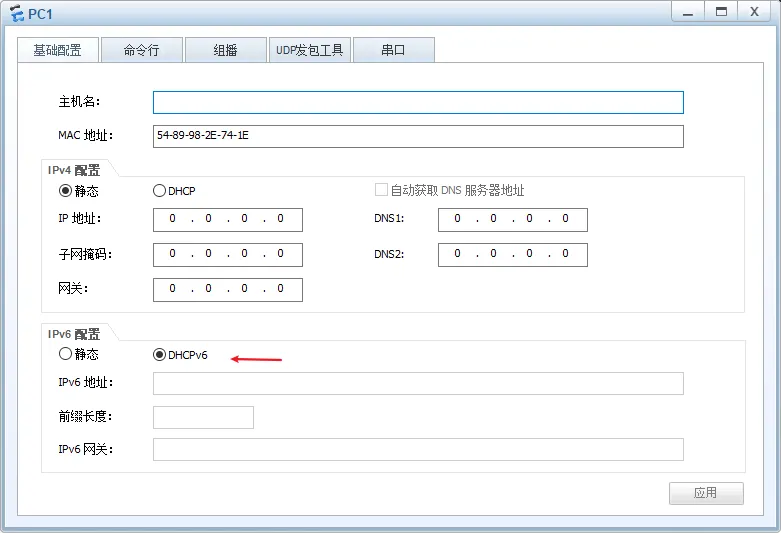

![自动获取地址](/media/202405/2024-05-07_173802_8053840.007801598561688494.png)

![客户端地址信息](/media/202405/2024-05-07_173819_7824910.9663217428179509.png)

服务器端查看信息：
```ssh
# 查看DHCPv6在接口的配置
[Huawei]dis dhcpv6 server interface g0/0/0
 Interface               : GigabitEthernet0/0/0
 DHCPv6 pool             : pool1
 Preference              : 0
 Allow-hint              : Disabled
 Rapid-commit            : Enabled
 Unicast                 : Disabled

# 查看DHCPv6地址池的分配信息
[Huawei]dis dhcpv6 pool pool1
DHCPv6 pool: pool1
  Address prefix: 2001::/64
    Lifetime valid 172800 seconds, preferred 86400 seconds
    1 in use, 0 conflicts
  Excluded-address 2001::10
  1 excluded addresses
  Information refresh time: 86400
  DNS server address: 2001:4860:4860::8888
  Conflict-address expire-time: 172800
  Active normal clients: 1

# 查看报文统计
[Huawei]dis dhcpv6 server statistics
 Message statistics of interface GigabitEthernet0/0/0:
   Message                  Received
   Solicit                  2
   Request                  2
   Confirm                  0
   Renew                    0
   Rebind                   0
   Release                  0
   Decline                  0
   Information-request      0
   Relay-forward            0
   Leasequery               0
   UnknownType              0

Message                  Sent
   Advertise                2
   Reply                    2
   Relay-reply              0
   Leasequery-reply         0
   Reconfigure              0
```

如果是在VLAN下配置也是类似的。

## 二、DHCPv6无状态配置
注意：ENSP自带的PC无法做DHCPv6无状态自动获取测试。

![无状态自动配置](/media/202405/2024-05-07_173840_1874830.3676405240421733.png)

简单讲就是AR1开启RA报文，AR2通过路由器通告方式获取地址，通过DHCPv6获取DNS等其它信息。

配置：
```ssh
# 服务器全局开启ipv6
ipv6

# 开启DHCP提供DNS信息
dhcp enable

# 地址池只分配DNS信息
dhcpv6 pool pool1
 dns-server 2001:4860:4860::8888

# 接口配置IPV6，
interface GigabitEthernet0/0/0
 ipv6 enable
 ipv6 address 2001::10/64
 ipv6 nd ra Max-interval 30
 ipv6 nd ra Min-interval 15
 undo ipv6 nd ra halt               # 开启发送RA路由器通告报文，实现无状态自动获取ipv6地址
 ipv6 nd autoconfig other-flag      # 通过O置位1获取除ip地址外的信息(DNS、SIP)
 dhcpv6 server pool1 preference 255 rapid-commit allow-hint   # 调用地址池，快速配置

# AR2客户端
# 全局开启ipv6
ipv6
# 开启dhcp功能
dhcp enable
# 接口配置ipv6
interface GigabitEthernet0/0/0
 ipv6 enable                            # 开启ipv6
 ipv6 address auto global default       # 通过无状态自动获取全球单播地址
 dhcpv6 client information-request      # 通过发送info报文获取除地址外的信息(DNS)
```

验证配置：
```ssh
# 在客户端查看获取的地址和DNS
[Huawei]dis dhcpv6 client interface g0/0/0
GigabitEthernet0/0/0 is in stateless DHCPv6 client mode.
State is OPEN.
Preferred server DUID   : 0003000100E0FC033F4D          # 服务器标识
  Reachable via address : FE80::2E0:FCFF:FE03:3F4D
Infomation refresh time is 86400 seconds
DNS server     : 2001:4860:4860::8888                   # DNS信息

[Huawei]DIS IPV6 INT G0/0/0
GigabitEthernet0/0/0 current state : UP
IPv6 protocol current state : UP
IPv6 is enabled, link-local address is FE80::2E0:FCFF:FED6:511F
  Global unicast address(es):
    2001::2E0:FCFF:FED6:511F,
    subnet is 2001::/64 [SLAAC 1970-01-01 00:49:20 2592000S] # 通过SLAAC无状态自动获取到地址
  Joined group address(es):
    FF02::1:FFD6:511F
    FF02::2
    FF02::1
  MTU is 1500 bytes
  ND DAD is enabled, number of DAD attempts: 1
  ND reachable time is 30000 milliseconds
  ND retransmit interval is 1000 milliseconds
  Hosts use stateless autoconfig for addresses
```

## 三、DHCPv6PD前缀代理

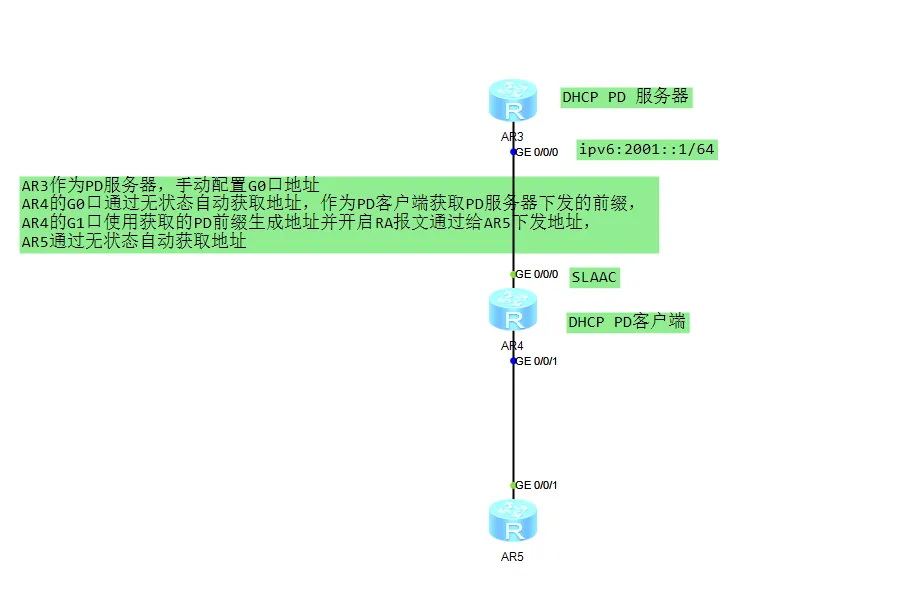

就是AR4作为代理，代理服务器分配给AR5的前缀。

![PD前缀代理](/media/202405/2024-05-07_173858_5096090.05470567547661087.png)

配置：
```ssh
# AR3 PD 服务器
# 全局启用ipv6
ipv6
# 开启dhcp
dhcp enable
# 配置PD前缀地址池
dhcpv6 pool pool1
 prefix-delegation 2002:1::/64 64
 dns-server 2001:4860:4860::8888
# 接口配置
interface GigabitEthernet0/0/0
 ipv6 enable
 ipv6 address 2001::1/64            # 手动配置地址
 undo ipv6 nd ra halt               # 发送RA报文
 ipv6 nd autoconfig other-flag      # 通过DHCP下发DNS等信息
 dhcpv6 server pool1 rapid-commit allow-hint # 调用地址池pool1

# 配置到达客户端网段的路由
ipv6 route-static 2002:1:: 64 2001::2E0:FCFF:FE00:283E

# AR4 PD客户端
# 全局启用ipv6
ipv6

# 开启dhcp
dhcp enable

# 直连接口使用无状态自动获取地址，以及配置pd地址池代理
interface GigabitEthernet0/0/0
 ipv6 enable
 ipv6 address auto global default
 dhcpv6 client pd pool1
# 下联接口调用代理的地址池pool1然后加上一个主机地址形成一个完整地址
interface GigabitEthernet0/0/1
 ipv6 enable
 ipv6 address pool1 ::1/64        # 也就是2002:1::/64+::1
 ipv6 address auto link-local     # 自动生成链路本地地址
 undo ipv6 nd ra halt             # 下联接口也发送RA报文供AR5生成地址
 ipv6 nd autoconfig other-flag    # 下发DNS信息


# AR5 客户端
# 全局启用ipv6
ipv6

# 开启dhcp
dhcp enable

# 接口使用无状态自动获取地址以及DNS信息
interface GigabitEthernet0/0/1
 ipv6 enable
 ipv6 address auto link-local
 ipv6 address auto global default
 dhcpv6 client information-request
```

各路由器地址：
```ssh
# AR3
[AR3]dis ipv6 int b
*down: administratively down
(l): loopback
(s): spoofing
Interface                    Physical              Protocol
GigabitEthernet0/0/0         up                    up
[IPv6 Address] 2001::1

# AR4
[AR4]dis ipv6 int b
*down: administratively down
(l): loopback
(s): spoofing
Interface                    Physical              Protocol
GigabitEthernet0/0/0         up                    up
[IPv6 Address] 2001::2E0:FCFF:FE00:283E
GigabitEthernet0/0/1         up                    up
[IPv6 Address] 2002:1::1

# AR5客户端
[AR5]dis ipv6 int b
*down: administratively down
(l): loopback
(s): spoofing
Interface                    Physical              Protocol
GigabitEthernet0/0/1         up                    up
[IPv6 Address] 2002:1::2E0:FCFF:FE4E:1753
```

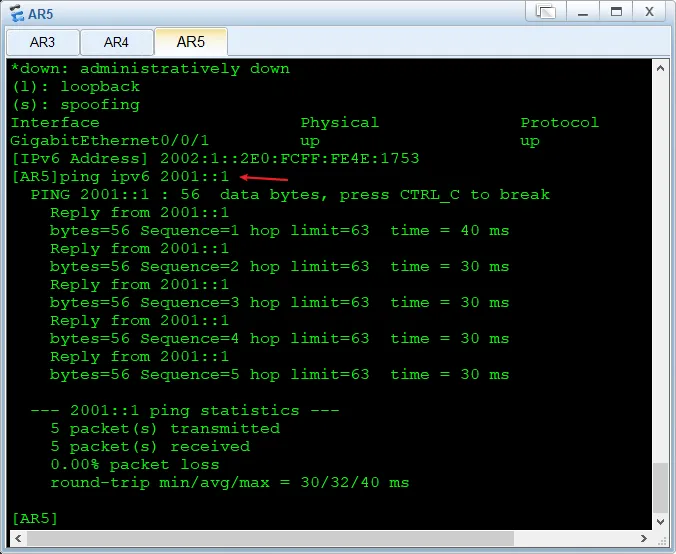

![客户端测试](/media/202405/2024-05-07_173920_5688430.006006945292878041.png)

这样就能够使用PD代理模式获取地址，简单说就是在服务器配置一个前缀给下联客户端分配地址。

总结：可以通过配置DHCPv6的有状态配置、无状态配置、PD代理等方式实现地址分配。
